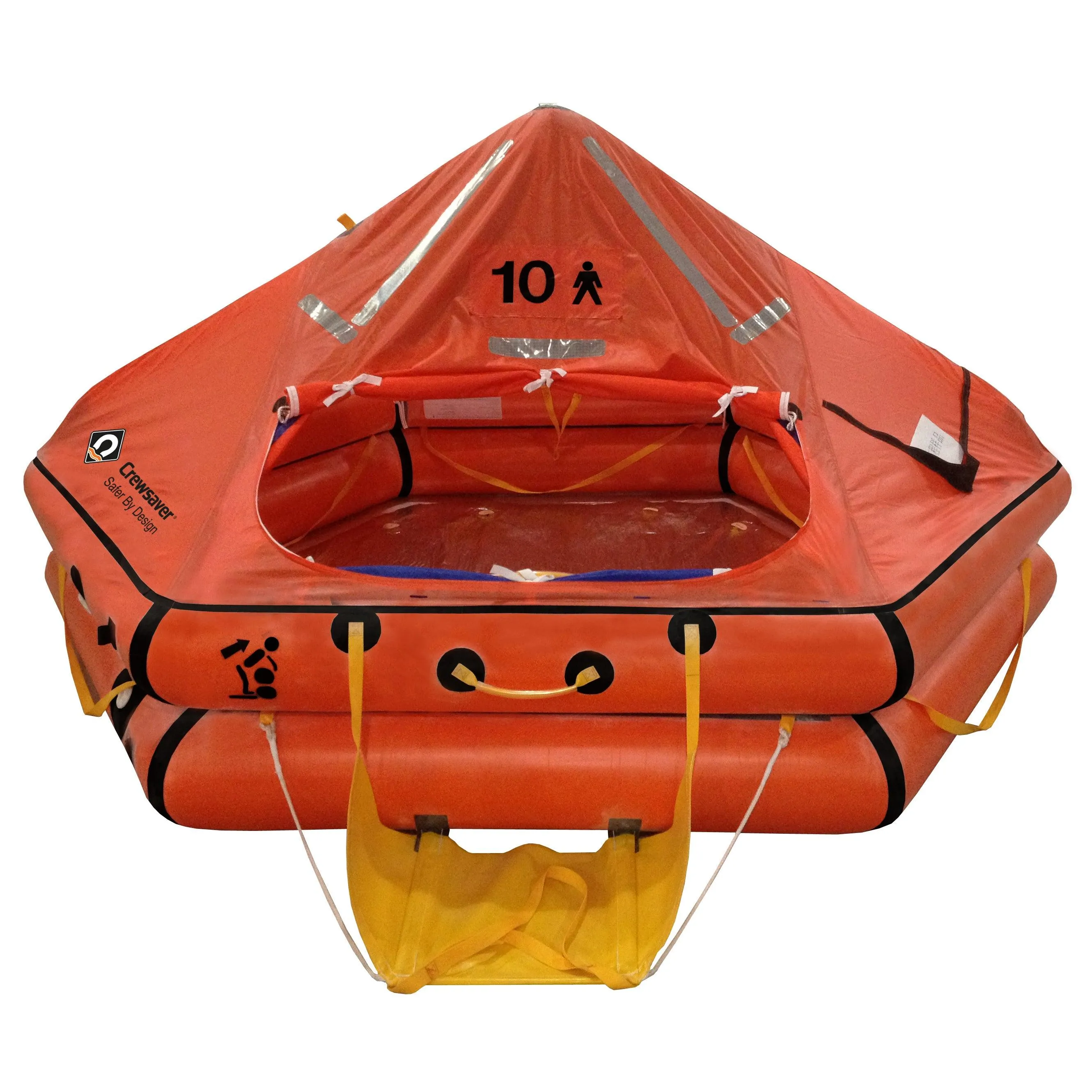

Using our skills and expertise in the design and manufacture of both liferafts and lifejackets, we have created the most advanced specification ISO Ocean Liferaft yet.
The Crewsaver Liferaft improves both safety and performance for you and your crew. It is approved to ISO 9650-1 standards and come with an extended three year service period.
- Superb value coupled with high manufacturing quality and standards

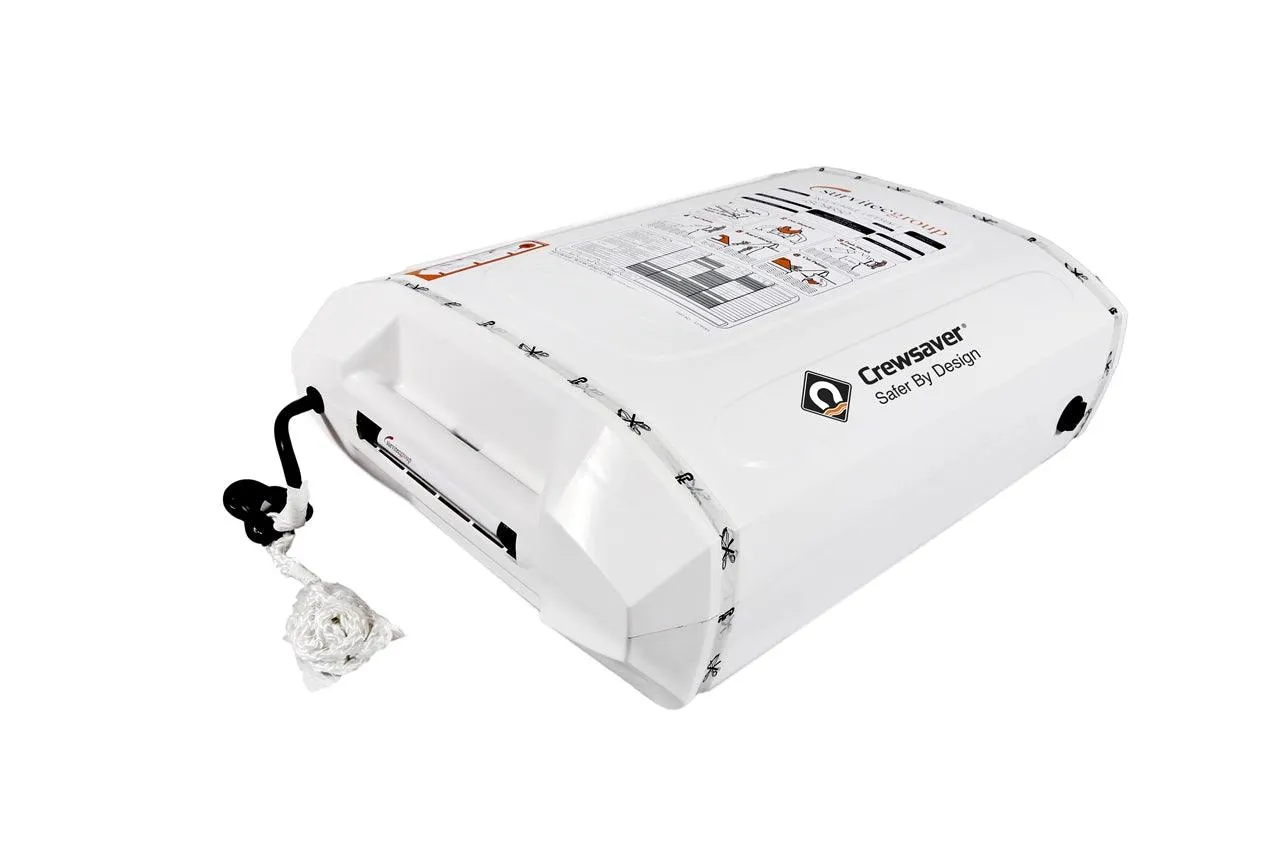

- Easy to transport with a choice of weatherproof valise or sleek, light container with side handles
- Innovative design with safety features including
- High volume of water pockets to ensure maximum stability (4 Man - 2 x 84 litre water pockets. 6, 8 and 10 Man - 3 x 84 litre water pockets. 12 Man - 5 x 60 litre water pockets)
- A semi-rigid boarding ramp for quick, easy and safe boarding
- Tough polyurethane coated nylon canopy
- Simple zip closed canopy door
- Interior and exterior lifelines for extra safety in heavy seas
- External strobe light to aid night location by search and rescue teams
- Internal LED light
- Rainwater catcher on the rear of the canopy
- Lookout sleeve located on the side of the canopy
- Emergency ration packs available for under or over 24 hours
The ISO Ocean liferaft has a polyurethane (PU) coating and possesses the following attributes:
- Flexibility
- Long lasting
- Abrasion resistant
- Highly resilient
- Highly durable
- Chemically inert fabric
Compact Solution
Lightweight and compact, the RFD ISO9650-1 Liferaft is easy to store and takes up minimal deck space, whilst offering complete confidence in an emergency, being deployed in less than one minute.
Specifications
RFD ISO9650-1 COASTAL NSCV Liferaft
| Equipment | Quantity |
| Bellows | 1 |
| Repair Kit | 1 |
| Paddles1 | 2 |
| Torch (incl batteries and bulb) | 1 |
| Bailer | 1 |
| Sponges | 2 |
| Water 1/2 Ltr | 1.5 ltr pp |
| Signals Signal Table | 1 |
| Survival at Sea Leaflet | 1 |
| Rescue Quoit with Line | 1 |
| Immediate Action Leaflet | 1 |
| Food Rations | 10,000kj pp |
| Seasickness Tablets | 6 pp |
| Heliograph | 1 |
| Whistle | 1 |
| 1st Aid Kit | 1 |
| Seasick bags | 1 pp |
| Red Hand Flare | 6 |
| Red Parachute Rocket Flare | 2 |
| Safety Knife | 1 |
| Thermal Protective Aids | 2 |
| Drogue | 1 |
| EPIRB | 1 - (For NSCV Coastal Regulations) |
Container Dimensions
| Reference Number | Number of Persons | Length mm | Width mm | Height mm | Weight kg |
| LGI048 | 4 | 810 | 590 | 255 | 48 |
| LGI068 | 6 | 810 | 590 | 305 | 58 |
| LGI088 | 8 | 810 | 590 | 353 | 67 |
| LGI108 | 10 | 810 | 590 | 423 | 78 |
| LGI128 | 12 | 810 | 590 | 423 | 86 |
RFD ISO9650-1 LEISURE Liferafts
| Equipment | Pack < 24 hours | In Liferaft | In Liferaft or in Grab Bag |
| Portable buoyant bailer easily operable by hand | 1 | Yes | |
| Sponge | 2 | Yes | |
| Pair of buoyant paddles with handles tied into raft | 1 | Yes | |
| Re-sealable and clearly marked first-aid kit including 2 tubes of sunscreen and dressings provided for use in wet conditions | Yes | ||
| Whistle | 1 | Yes | |
| Waterproof torch with 6 hour duration, separate battery and bulb | 1 | Yes | |
| Signalling mirror | 1 | Yes | |
| Anti-seasickness pills, per person | 6 | Yes | |
| Seasickness bag with simple effective closure system, per person | 1 | Yes | |
| Red hand flares in accordance with SOLAS LSA Code Chapter III, 3.2 | 3 | Yes | Yes |
| Red parachute flares in accordance with SOLAS LSA Code Chapter III, 3.1 | 2 | Yes | Yes |
| Thermal protective aids in accordance with SOLAS LSA Code Chapter III, 2.5 | Yes | ||
| Repair kit which enables survivors to repair leaks in any, or all of the inflatable compartments. Designed to work when wet and be capable of being applied during violent motion | 1 | Yes | |
| Simple and robust air pump, with all necessary connections, ready for instant use to enable air to be pumped into any or all of the inflatable compartments. Specifically built for easy operation by hand | 1 | Yes | |
| Drinking water per person, in containers of each not more than 500ml | Yes | ||
| Food per person | Yes |
Hard Fiber Glass Container Dimensions
| Rated Capacity | Length mm | Width mm | Height mm | Base Dimension Length (mm) | Base Dimension Width (mm) | Weight (kg) |
| 4 | 810 | 570 | 220 | 685 | 530 | 36.1 |
| 6 | 810 | 570 | 255 | 685 | 530 | 42.2 |
| 8 | 810 | 570 | 255 | 685 | 530 | 47.8 |
| 10 | 810 | 570 | 305 | 685 | 530 | 54 |
| 12 | 810 | 570 | 305 | 685 | 530 | 57 |
Valise Container Dimensions
| Rated Capacity | Length mm | Width mm | Height mm | Weight (kg) |
| 4 | 810 | 570 | 220 | 36.2 |
| 6 | 810 | 570 | 255 | 41.6 |
| 8 | 810 | 570 | 255 | 41.7 |
| 10 | 810 | 570 | 305 | 47.4 |
| 12 | 810 | 570 | 305 | 50.4 |
